| Model:SC17W |
| PC |
| CPU | Intel® Celeron 3855U Dual core 1.6GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR4 (2G, 8G Optional) |
| Hard Drive Capacity | 64G SSD(M2) |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI(Optional) |
| I/O Interface | 3*USB+2*RS232+1*LAN/DC Input |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | 10 points capacitive touch |
| Touch solution | EETI |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch) |
| Power Supply |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure |
| Material | Stainless steel case |
| Color | Silver |
| VESA mounting | 75x75mm/100x100mm |

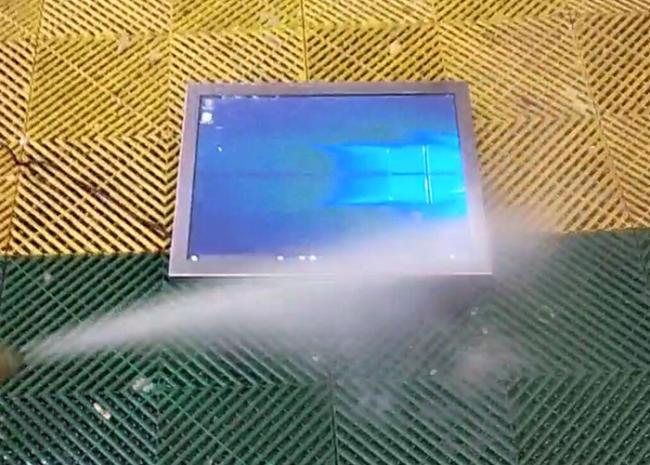

| IP grade | Full IP67 waterproof |
| Operating Environment |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 8 kg |
| Gross weight | 10 kg |

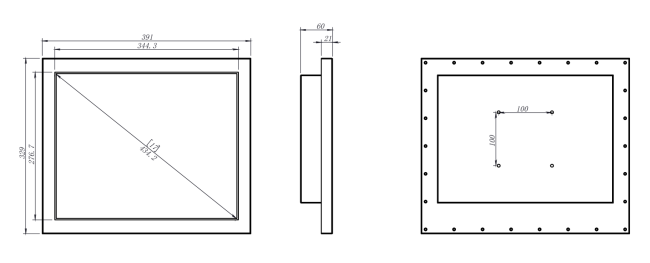

| Product Dimension | 39.1x32.9x6.0 cm |
| Packing size | 53×45×18 cm |
| Accessories | Waterproof power adapter, power cord, waterproof RS232/LAN/USB cable |
| Other |
| Mounting way | Wall mounting brackets |
| Desk stand holder (Optional) |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
