Industrial Mechanical Control Cable Assembly Pull Only Tension Gear Change Cables


Price	Negotiation
MOQ	10 piece
Delivery Time	7 - 40 work days
Brand	Phidix
Place of Origin	Shang Hai
Certification	IATF16949
Model Number	CA306-TT-A-L
Packaging Details	carton or wood case
Payment Terms	L/C,D/A,D/P,T/T
Supply Ability	800 pcs per month

Product Details

Product Specification

Place of Origin	Shang Hai	Transmission direction	pull only unidirectional
Applications	Throttle control,Blade engagement,Choke,Latch release,Window release,Seat release	Packaging Details	carton or wood case
Model Number	CA306-TT-A-L	Supply Ability	800 pcs per month
Certification	IATF16949	Brand Name	Phidix
Payment Terms	L/C,D/A,D/P,T/T	Series	pull only Industrial Control Cable Assembly
Price	Negotiation	Delivery Time	7 - 40 work days
Suggested End Fittings	Rod Ends,Clevises,Threaded End Fittings	OEM	Yes
Minimum Order Quantity	10 piece

Product Description

Phidix Pull-Only Tension Control Cable

When your application requires precise linear control without pushback, the Phidix Pull-Only Tension Cable offers a compact, sealed solution trusted in gear release, shutoff, lockout, and throttle applications.

Built for performance in rugged mechanical environments, this cable assembly is optimized for tension-based actuation and routing flexibility—ensuring smooth pull response, sealed durability, and long-term performance.

Engineered for Mechanical Reliability

• Pull-Only Design: Transfers motion through steel inner core with no compression instability.

• Lubed-for-Life Conduit: Sealed, maintenance-free design with long operating life.

• Protective End Caps: Optional brass conduit caps and stainless steel rod ends improve corrosion resistance.

• Flexible Routing: Handles curved paths with minimal friction or signal loss.

Whether you need to trigger an engine shutoff, disengage a clutch, or release a latch—this cable is built to do one job, and do it with consistency.

Typical Applications

• Manual gear disengagement systems

• Throttle actuation for compact machinery

• Emergency engine shutoff or fuel cut systems

• Lock-pull or release mechanisms on equipment doors, hatches, and booms

• Mechanical safety lockout in oilfield, marine, or agricultural systems

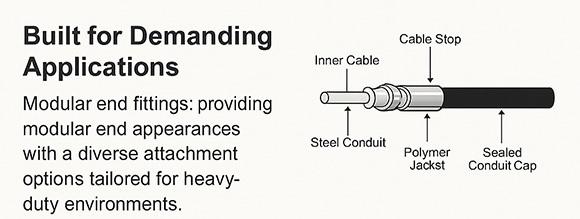

Internal construction of Phidix Pull-Only Tension Control Cable with sealed core and conduit protection

Technical Specifications

Feature	Detail
Actuation Type	Pull-only (tension)
Conduit	Steel wrap + low-friction liner, sealed
Core	Galvanized steel; optional stainless
Jacket Options	Black PVC or optional thermoplastic
Lubrication	Factory sealed; no re-lubrication required
Conduit End Caps	Brass (default); stainless optional
End Fitting Options	Threaded rod, clevis, ball stud, panel mount

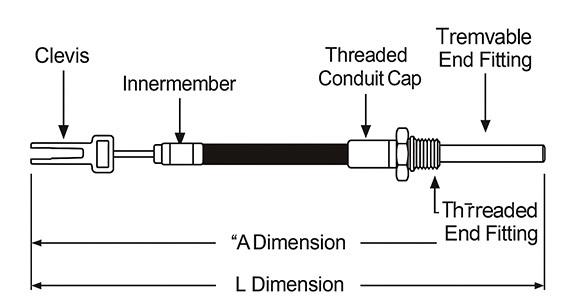

Recommended Travel (A)	1.00" to 5.00" typical
Housing Length (L)	As specified; up to 120"+
Certification	Manufactured under IATF 16949 quality system

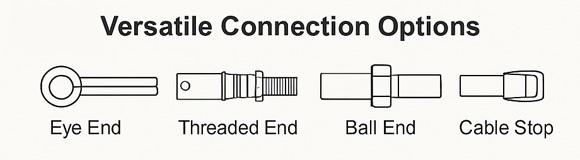

End Fitting Options

Need a specific combination? Our engineers can configure end connections based on your interface requirements.

Why Choose Phidix Pull-Only Tension Cables?

• Built for sealed reliability: No dust or grit intrusion thanks to lubed-for-life conduit.

• Modular design: Compatible with a wide range of control heads and interfaces.

• Trusted across industries: Used in transportation, agriculture, industrial machinery, and energy systems.

• Backed by quality systems: Built to IATF 16949 standard for global OEM compliance.

Request Custom Specification⇒
